Brand Name : ANNHUNG
Model Number : AH-SA-B
Certification : ICAO CE
Place of Origin : China
MOQ : 1
Payment Terms : T/T, Western Union, MoneyGram
Delivery Time : 7-15 work days
Packaging Details : carton
Available Colors : Red, Green, Yellow, White, Blue
Light Source : LED
Operating Voltage : 3.7
Solar Module Type : Mono crystalline Silicon
Charging Regulation : Microprocessor controlled
Battery type : Lithium ion battery
Fragile coupling need to be paid separately if needed.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Physical
Integrated design, enabling a rugged and completely waterproof seal capable of prolonged and deep immersion (IP68).
Built-in mono crystalline silicon solar panel, conversion efficiency is better than poly crystalline silicon
System design
ON/OFF button interface located under base
Optional
External battery charger for 110-240vac charging
Installation bracket
Application
Airport, Touchdown and Lift- off area ( TLOF) , Final Approach and Take- off area ( FATO) , Taxiway lighting, Runway edge lighting, Portable or expedited airfield lighting, Threshold lighting
Helipad taxiway
Emergency operations
Description | Parameter |
Light Source | LED |
Flash Characteristics | Steady-burning |
Light intensity(cd) | 12cd |
LED Life Experience(hours) | >100,000 |
Operating Voltage | 3.7 |
Circuit Protection | Integrated |
Mounting | 140×140×M6 |
Dimension(mm) | 162×162×160 |
Weight(kg) | 1 |
Ambient Temperature(℃) | -55~70 |
Humidity | 0~100% |
Wind Speed | 80m/s |
Waterproof | IP68 |
Options Available | NVG - compatible infrared (IR) LED |
Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.
All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
Download datasheet of Company Profile : Download Shenzhen Anhang Company Profile.pdf
![]() |

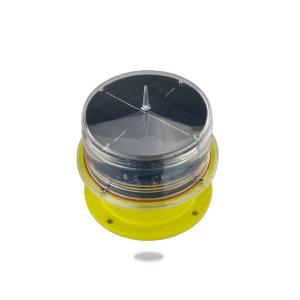

Green Solar Airport Light Aiming Point Light Touchdown And Lift Off Area Light Images |
