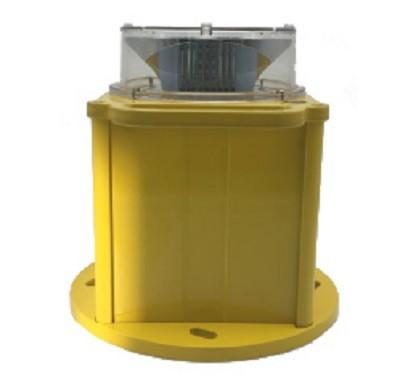

IP66 Waterproof 2500cd Heliport Beacon Lights Polycarbonate AH-HP-B2 For Helideck

Brand Name : Annhung

Model Number : AH-HP-B2

Certification : CE, RoHS

Place of Origin : China

MOQ : 1

Payment Terms : L/C,T/T,Western Union

Supply Ability : 1000

Delivery Time : 7-15work days

Packaging Details : Carton

Product Name : LED Heliport Beacon

Light Source : LED

Available Colors : White

Horizontal Output(degrees) : 360

Operation Mode : 24hours operation

Ambient Temperature(℃) : -35~80

Humidity : 10~90%

Wind Speed : 80m/s

Contact Now

Heliport Beacon Helipad Landing Lights IP66 Waterproof For Helideck

Helideck

Heliport Beacon

Helipad Landing Lights

AH-HP-B2 heliport beacon shall be located on or adjacent to the heliport preferably at an elevated position and so that it does not dazzle a pilot at short range
Compliance
  • ICAO Annex 14 Volume
  • FAA AC 150/5390-2B Heliport Design Guide
  • CAP 437
Features
Electrical
  • LED as light source saving power consumption and maintenance,
    95% less power than equivalent incandescent light
  • Power supply available in DC(12, 48VDC) or AC(110-240VAC)
Physical
  • Clear polycarbonate lens for converging light and also provides
    corrosion resistance and UV protection.
  • UV protection Powder coated bright yellow color base make better
    visibility
  • Base material is die casting aluminum which has strong corrosion
    resistance, Shock and Vibrations protection
Optional
  • Controller for power supplying and turn ON/OFF light
  • VHF pilot to ground remote control
Application
  • Helipad/Heliport/Helideck

SPECIFICATIONS AH-HP-B2 LED Heliport Beacon
Light Characteristics
Light Source LED
Available Colors White
Intensity(cd) - White ≥2500cd
Flash Characteristics Morse code “H”
Operation Mode 24hours operation
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12V, 48V) or AC(110-240VAC)
Circuit Protection Integrated
Physical Characteristics
Body Material UV protected Polycarbonate
Base Material Powder-coated Die-casting aluminum
Mounting 200×200×θ12
Dimension(mm) 250×250×250
Weight(kg) 3.5
Product Life Expectancy Average 10 years
Environmental Factors
Ambient Temperature(℃) -35~80
Humidity 10~90%
Wind Speed 80m/s
Waterproof IP66
Compliance
ICAO ICAO Annex 14 Volume
FAA

FAA AC 150/5390-2B Heliport Design Guide
Optional
VHF Pilot to Ground Remote Control
Solar Powered System

Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
