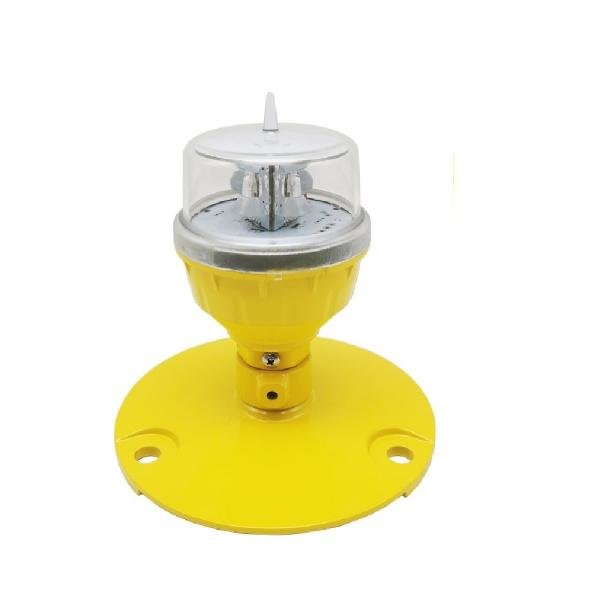

DC12V 50cd Helipad Landing Lights Steady Burning 24hrs UV Polycarbonate

Brand Name : Annhung

Model Number : AH-HP/E1

Certification : CE, RoHS,ICAO

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, D/P

Supply Ability : 2000Pieces for one month

Delivery Time : 7-15work days

Packaging Details : Carton

Colors : Green, Yellow, White, Red, Blue

Intensity(cd) : ≥50cd

Mounting : 140×140×12

Dimension(mm) : 165×165×170

Weight(kg) : 0.7

FAA : FAA AC 150/5390-2B Heliport Design Guide

Contact Now

Helipad Runway Edge Elevated Light Steady burning 24hours operation

Heliport Elevated light should not exceed a height of 25cm. There is a fragile coupling in the base connection, so if aircraft hit the light by accident, the base will break immediately to avoid more damage.
Compliance
ICAO Annex 14 Volume ǁ Heliports 5.3.
FAA AC 150/5390-2B Heliport Design Guide
CAP 437
Features
Electrical
LED as light source saving power consumption and maintenance, 95% less power than equivalent incandescent light
Power supply available in AC(110-240VAC) and DC48V, DC12V and other voltage is optional
LED power supply board includes short circuit and open circuit protection
Line surge protection by metal oxide varistor
Physical
Unique designed polycarbonate lens for converging light and also provides corrosion resistance and UV protection.
Base material is die casting aluminum which has strong corrosion resistance, Shock and Vibrations protection
Fragile coupling base reduce the secondary damage to helicopters effectively
Optional
Infrared LED for pilot using NVG(Night Vision Goggles)
Controller for power supplying and turn ON/OFF light
VHF pilot to ground remote control
Application
Helipad/Heliport TLOF edge areas
Heliport FATO edge
Helipad taxiway edge
DescriptionParameter
Light Source
Ultra high intensity LED
Available Colors
Green, Yellow, White, Red, Blue, IR
Intensity(cd)
≥50cd
Horizontal Output(degrees)
360
Vertical Divergence(degrees)
≥10
LED Life Experience(hours)
>100,000
Operating Voltage
DC48V and AC(110-240VAC), DC12V
Body Material
UV protected Polycarbonate
Base Material
Powder-coated Die-casting aluminum
Base
Frangible coupling
Product Life Expectancy
≥10 years
Wind Speed
80m/s
Waterproof
IP66
FAA
FAA AC 150/5390-2B Heliport Design Guide



Company Information

Anhang Technology founded in year 2009, is a high-tech specialized enterprise focusing on research, production, sales and after-sales service of aviation obstruction light, aircraft warning light, helipad lighting, solar airfield lights, marine navigation lanterns. Our facory located in Shenzhen City, China, have more than 10 years manufacturing experience for clients from whole world. Till now, we've got 42+ patent and passed international and domestic certification, ie: CE, ICAO, FAA, CAAC, IALA, ROHS, ISO9001, ISO14001, ISO45001,etc.


All aviation obstruction light, aircraft warning lights, helipad lighting, solar airfield lights are fully complied with standards of ICAO(International Civil Aviation Organization), CAAC(Civil Aviation Administration of China), FAA(Federal Aviation Administration). The marine navigation lanterns are produced according to the standards of IALA (International Association of Lighthouse Authorities).
